Vegetable Oil Refinery

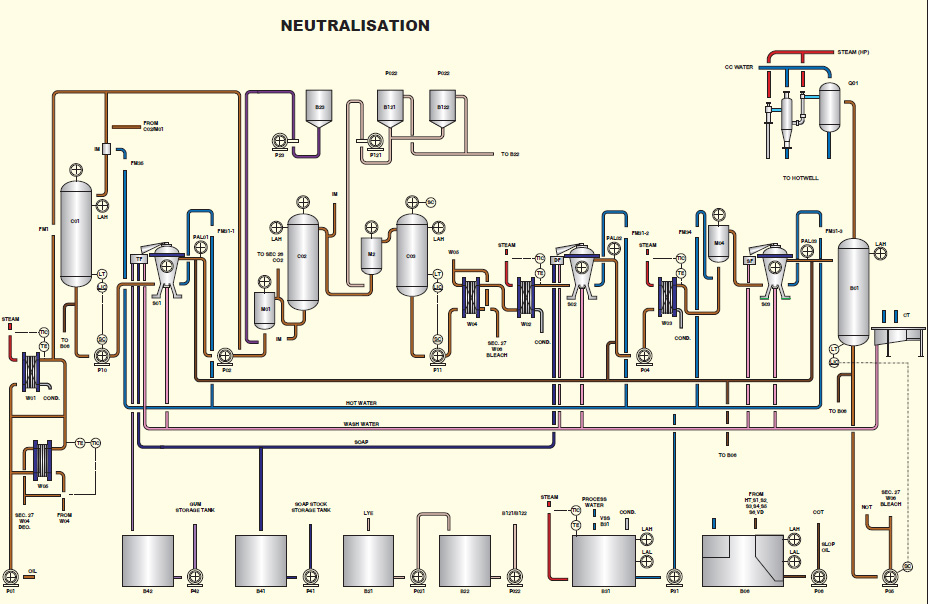

Neutralization Plant


Vegetable Oils like Soya, Sunflower, Cottonseeds, Rapeseeds etc. are first subject to the process of degumming. Here phosphotites in the oil are hydrated with water and then removed by separating in the centrifugal separators. The degummed oil is then subject to neutralization with caustic soda where the free fatty acids are converted into soap and are separated in hermetic separators. The neutralized oil is then washed and dried.

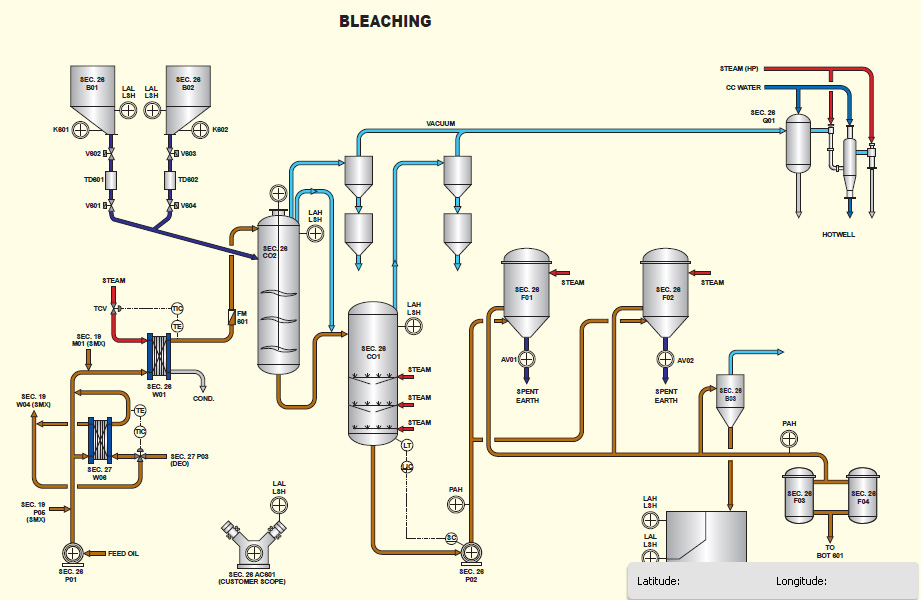

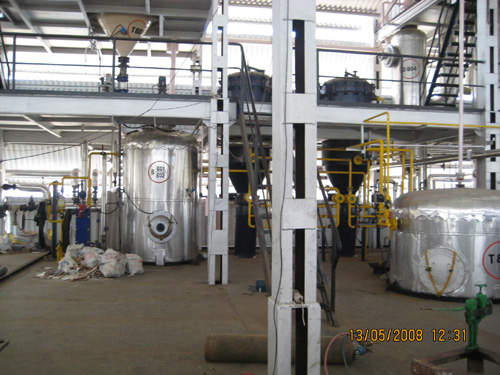

Bleaching Plant

The neutralized oils are mixed with adequate quantity of bleaching earth dosed through an accurate dosing system.
The mixed oil is then transferred to a bleacher where oil under vacuum is agitated with steam. This also imparts the wet bleaching effect.

The oil is then filtered through pressure leaf filters. The filter leaves used are in special stainless construction with the mesh imported from reputed suppliers.

The filter have special pneumatic vibrators for discharge of cake and special butterfly valve for easy opening and discharge. The bleached oil produced has very low phosphorous levels and no soap.

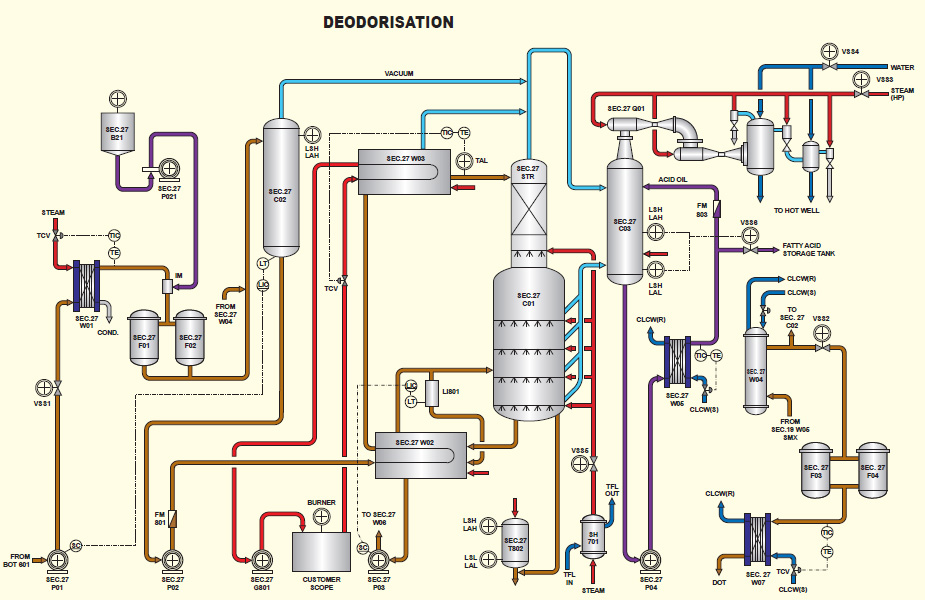

Deodorisation Plant


Multistage Deodorizers are in stainless steel construction with heating and cooling oil under vacuum. The Deodorizers have special sparge steam nozzles and mammoth pumps for uniform and aggressive mixing of steam and oil. Heating arrangement both with thermic fluid heating system or with high pressure steam thermo siphon are available. Adequate retention time is provided for light colors. Refined oils produced have high
